| Potentiometer model： | SV20 series |
| Name： | 20mm Travel Slide potentiometer |
| Main Specifications: | Travel: 20mm； Resistance Tolerance: ±20%； Rated power: 0.1W； Operating temperature: -10℃~70℃； Operating life: 10,000 Min； |
| Product Features： |
Smooth operation with small size; Available with center click; |
| Applications： |
Professional audio like mixing consoles, electronic pianos, guitars and other related electronic devices. Mainly used to adjust the volume, adjust the channel, adjust the balance, etc. |
ONE、MECHANICAL CHARACTERISTIC
1. Operating force: 10~200gf.cm
2. Slide travel: 20 ±0.5mm
3. Lever stop strength: 3Kgf
4. Lever shaft Wobble: 2(2XL/25)mmp-p Max
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: A/B/C
3. Power rating: 0.1W
4. Insulation Resistance: 100 MΩ 1 Min at DC 250V
5. Dielectric Voltage: 1 Minute at AC100V
THREE、ENDURANCE CHARACTERISTIC
1. Operating Life: 10,000 cycles Min

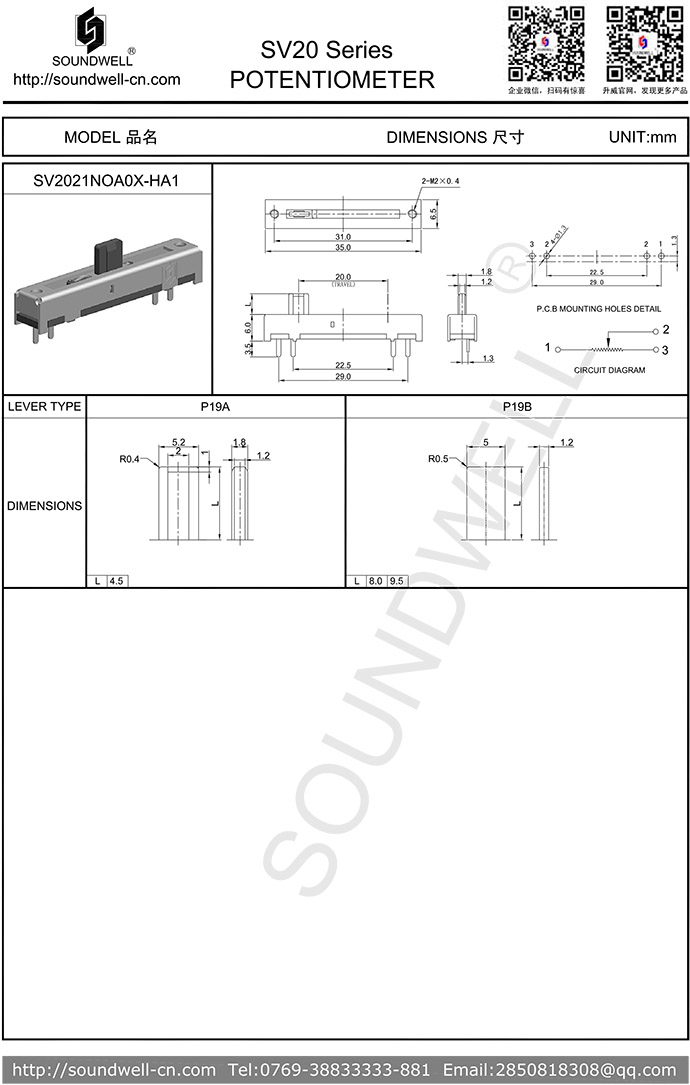

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
