45mm Travel Slide potentiometer
| Potentiometer Model： |

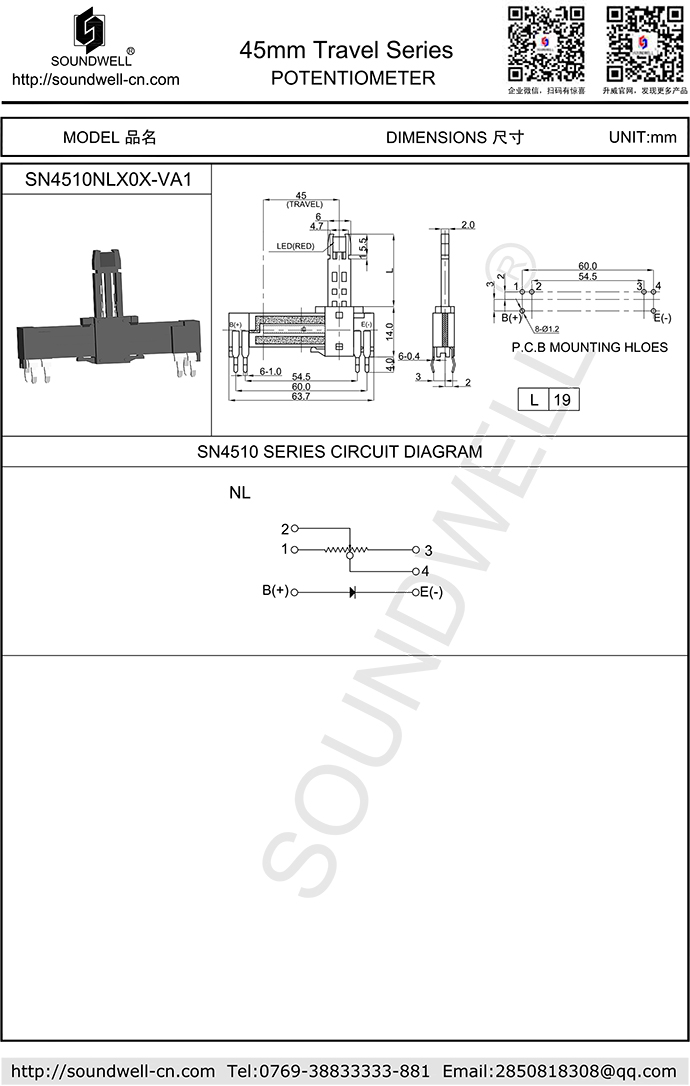

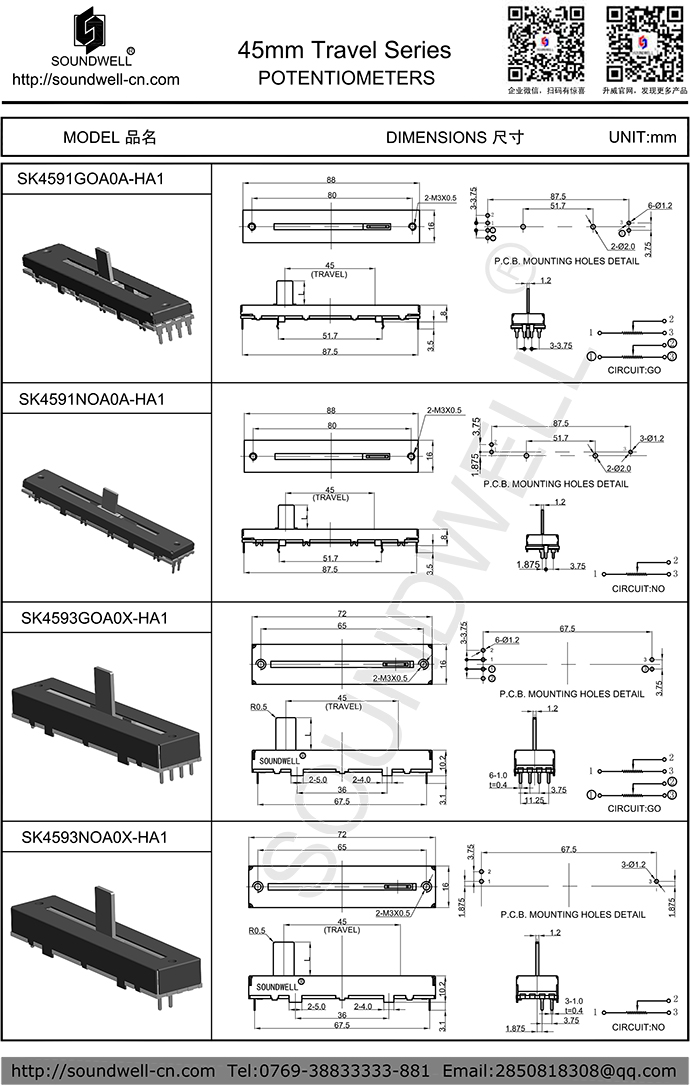

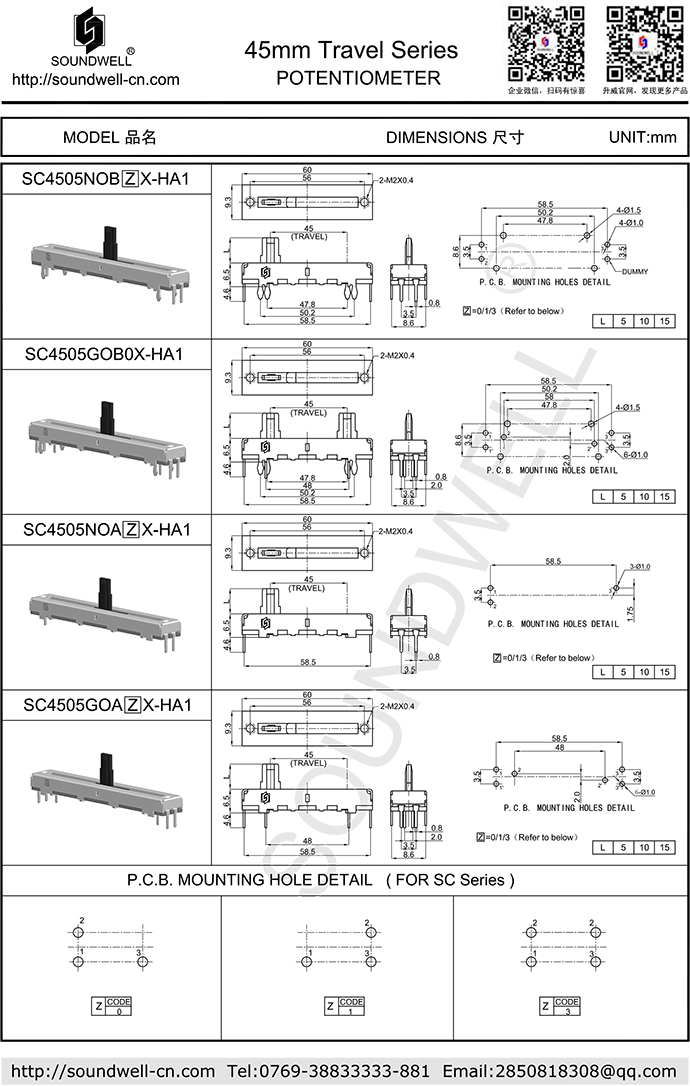

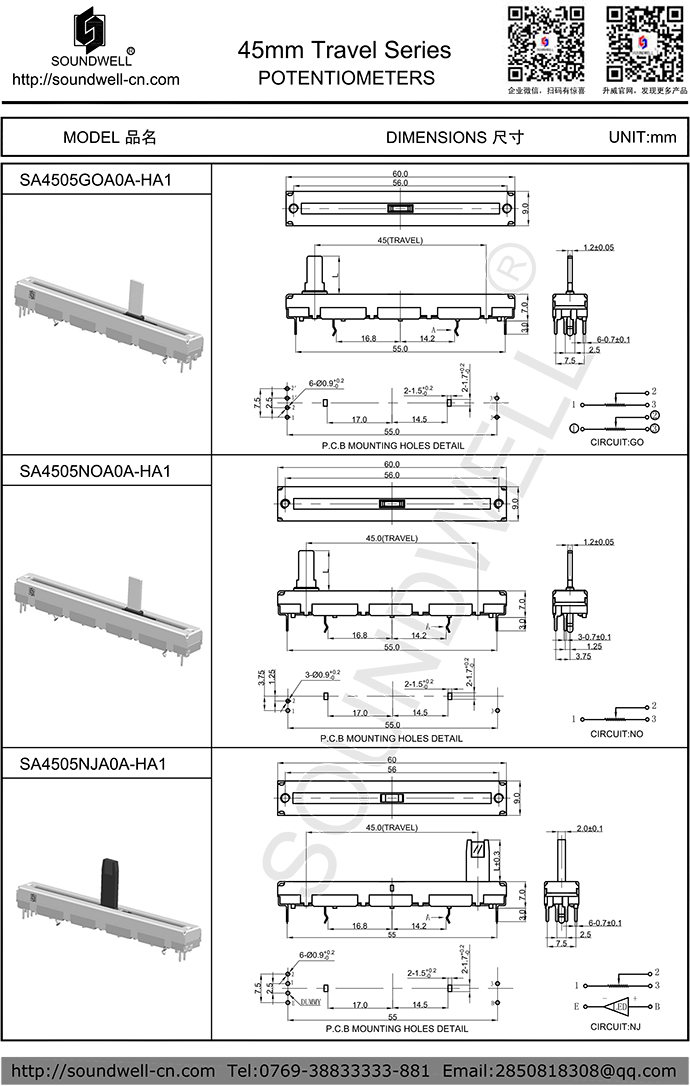

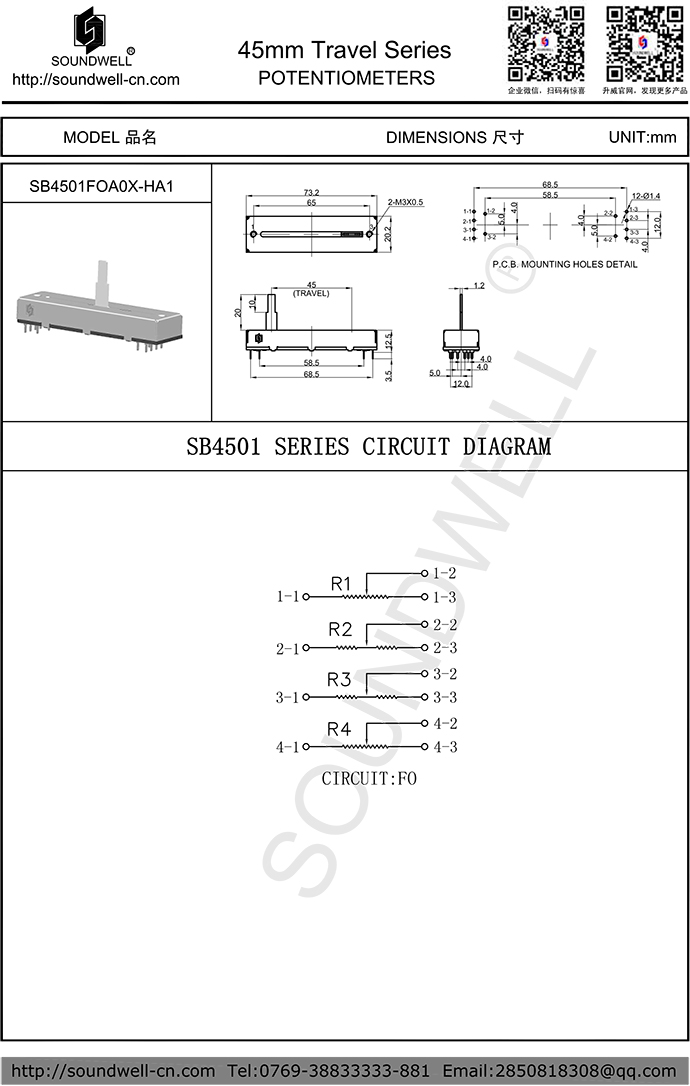

SC4503/SC4505/SN4510/SB4501/SK4591/SK4593/SA4505 series
|
| Name： | 45mm Travel Slide potentiometer |
| Main Specifications: | Travel: 45mm Rated power: 0.2W Maximum operating voltage: AC 100V； Operating temperature: -10℃~70℃； Operating life: 10,000 Min； |
| Product Features： |
Smooth operation with reliable performance; Available in both mono and stereo types; Available with center click and LED; Wide options for different applications; |
| Applications： |
Professional audio like mixing consoles, electronic pianos, guitars and other related electronic devices. It mainly plays a role in adjusting volume, tone and adjusting balance |
ONE、MECHANICAL CHARACTERISTIC
1. Operating Force: 15~150gf.cm
2. Click force: 80~330gf.cm
3. Slide Travel: 45mm
4. Lever Stop Strength: ≥3.0Kgf.cm
5. Lever Wobble (mm p-p): 1.6mm Max.
TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: B
3. Rated Power: 0.2W
4. Maximum Operating Voltage: 100V AC
5. Residual Resistance: R1, 2≤10Ω; R2, 3≤20Ω
6. Insulation Resistance: 100M? 1 Minute at DC 250V
7. Dielectric Voltage: 1 Minute at AC 250V
THREE、ENDURANCE CHARACTERISTIC
1. Operating Life: 10,000 Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
