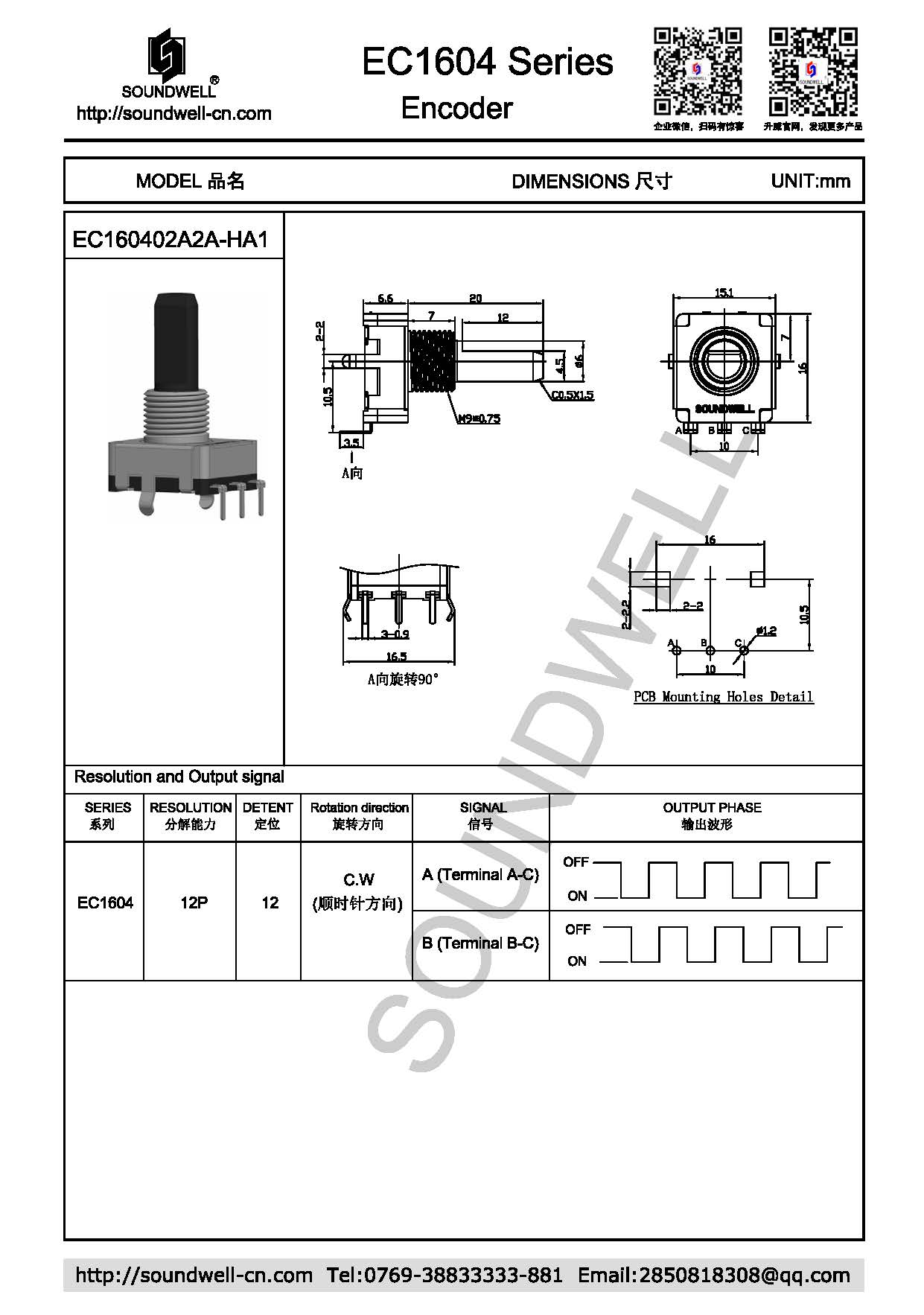

EC1604 Insulated Shaft Rotary Incremental Encoder
| Encoder model： | EC1604 series |
| Name： |
Insulated Shaft Rotary Incremental Encoder |
| Main Specifications: |
Dimensions: 16mm； |
| Product Features： |
Spring steel ball structure positioning mode; |
| Applications： |
Washing machines and other household appliances; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 10-350gf.cm
2. Number of detent: 12
3. Shaft wobble: 0.7 x L/30mm p-p Max (L: Mountinf length)
4. Shaft play: 4° Max
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 12 pulses/360°
2. Phase difference: ≥3.5ms
3. Power rating: DC 5V
4. Insulation resistance: 10M? 1 Minute at DC 50V
5. Dielectric voltage: 1 Minute at AC 50V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
